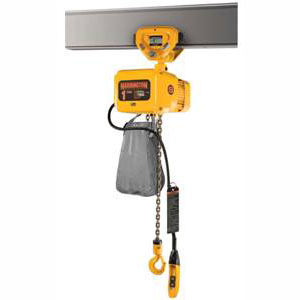

Harrington 3 Ton NER Electric Chain Hoist, 3 Phase, 17 FPM Lifting Speed, Push Trolley

Base Product Includes:

  • Single Speed Hoist Operating at 17 FPM
  • Push Operated Trolley
  • 10’ of Lifting Height
  • 2 Button Push Button Station With E Stop
  • 15′ Power cord
  • Trolley Fits Beam Flange Range 3.23″ – 6.02″

Available Options:

  • 15’ and 20’ Lifting Heights (Call Loadhook for additional lifting heights)
  • Canvas Chain Container Kit
  • Two Speed Hoist Operating At 17/3 FPM
  • Beam Flange Extender
  • 30’ Power Cord

Hoist Lifting Speed *

Hoist Lifting Height *

Chain Container *

Power Supply *

Power Cord *

Beam Flange Width *

Beam flange width, in inches, of the beam the hoist and trolley will be operating on.


Harrington’s (N)ER enhanced features three phase electric chain hoists are equipped with the latest technology in the market today. All models include a low headroom, lightweight body with a fan-cooled motor, standard thermal motor protection and a count hour meter for preventive maintenance. A secondary mechanical load brake is an additional feature on ER models only. Simply the best hoists on the market!

  • (N)ER capacities 1/8 Ton through 20 Ton
  • Smart Limit option is available on NER capacities 1/8 through 5 Ton
  • 60 minute, H4 rated motor for the most demanding applications
  • “The Guardian” Smart Brake Technology revolutionary DC current motor brake with electrical failsafe design and 10 year warranty
  • Adjustable dual speed via under-the-cover variable frequency drive
  • All standard models are UL listed to UL 1340 “Standard for Hoists”
  • Completely sealed body suitable for harsh indoor or outdoor environments- IP55 rated
  • Plug in pendant and power supply cords save time on set up and maintenance
  • Super strength, nickel-plated load chain is corrosion and wear resistant
  • 5 or 6 pocket load sheave improves chain life and promotes smooth lifting

Additional information

Weight 284 lbs
